Blocks   |    Heads   |   Cranks   |   Misc/Other    |   New Items

plateDo you want your Cosworth Engine to look the part when your engine cover/bonnet is raised; then go for this indistinquishable from original

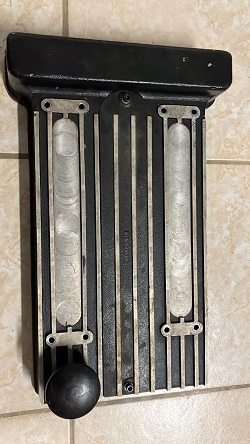

COSWORTH ROCKER COVER PLATE - as used in the 60's on all Cosy Motors . Only £15 a piece SOLD OUT

Details Picture (if available)
Looking for gearbox dog rings ? see http://www.dogring.co.uk/

Ref: FM/11/3/19

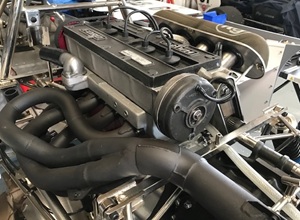

Cosworth BDM

- in Formula Atlantic format. Engine totally rebuild so it is as new, and ready to install.

Only run while on test after rebuild.

Standard size steel crankshaft, dry sump, Cosworth con rods and pistons. F1 camshaft & steel 12 bolt flywheel

It is ready to fit and race.

Price £11950

PIC



PIC



PIC

Ref: SM/2/2/19

Formula Junior Engine for Sale (1100cc)

New liners machines into block
Then align hone to tight tolerance to match pistons and rings Deck face skimmed for correct compression height Front face and back face checked for trueness Sump face on block checked for trueness Stroke of crank 48.35 on steel main bearing caps. Rods balanced to crank. 85m pistons balanced to rods and crank using A6 camshaft Clearance on the main bearings is 002” clearance on the rods bearings is 002”

Cylinder head has been skimmed bronze guides have been checked for tolerance valve seats have been re-cut valves and combustion chamber matches 85 mm pistons in cc total volume sweep does not exceed 1100 cc The engine has been totally re-machine and freshly rebuilt All the machine work recently carried out to a very high standard. Rebuilt apart from inlet manifolds and Webbers Engine is ready to install and race

Price £9,500

pic

pic

pic

pic



picpic

pic

pic







Ref: SM/5/2/19

Formula Junior Engine for Sale (1000cc)

Formula junior 1000cc Engine freshly rebuilt full steel internals Cylinder bores are under 80.98mm Steel crankshaft 6 Bolt flywheel AP clutch steel main caps forged pistons on steel rods stainless valves, double valve springs Rocker shaft on steel posts , A6 camshaft Front mounted oil pump on dry sump. at present The engine as tooth driven water pump but we can change to standard belt driven water pump if required The engine is Holbay originally freshly Rebuilt with new parts engine as had excellent machine work carried out to a very high standard with tight tolerances Engine is periodically correct for formula junior race car.

Available is list of machine work and rebuild with spec sheet included. This engine is not 1100cc but the more rarer 1000cc version. It requires inlet manifolds and carburettors before installing but can be provided at extra cost if required

Price £10500

picpic



pic







Ref: TA/8/2/19

FVC engine with Aluminium block. -  Sorry Now Sold

 in good working order,

Price  £17,000

pic

oux

Ref: FM/29/10/18

Cosworth FVA timing gears, timing cover & Jackshaft -  complete kit



Price for each kit is £875  (All Sets Now Sold)All sold

pic

Ref: 30/7/PH

1700 cc Kent 45 Italian Weber's 15 degree inlet manifoldsold

It has some nice features such as a 12 bolt, narrow journal steel crank, cast Farndon rods and has a gear-driven cam. Comes with silencer and 4 into one manifold It has only run in a few hill climbs and done nothing for three years

Price £5750

pic



pic

pic



Ref;  AG/1/4/18

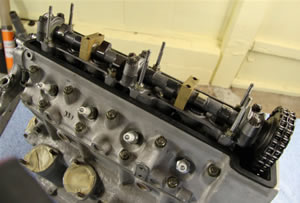

Climax 2.0 Ltr FPF Engine for rebuild.





BLOCK. Purchased new from C&G only about five years ago & had done limited mileage. Following damage to the block in a non-critical area it was repaired by stitch welding, (see photos) the block will need line boring.

CYLINDER HEAD. Following a rod end bolt failure number 1 piston hit the head, (see photo IMG 5029) the damage does not look significant, could be laser welded to restore shape, head surface is good. Photo IMG 5030 shows an undamaged port for comparison

 Price £offers.



pic

pic





pic

pic

pic

pic







Ref  DFR/19/2/18

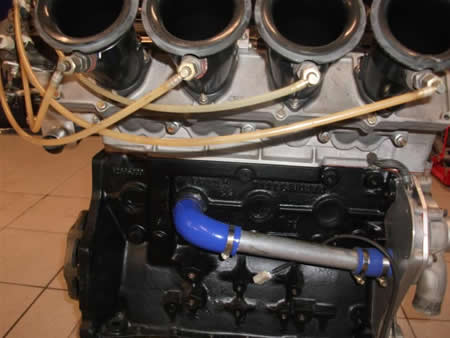

BMW M12 - 2.0 Ltr for sale
pic



stroke 80 bore 89

Titanium con rods

New titanium con rods bolts

Titanium valves

New Piston

New Bushing,

Fresh condition and ready to race.

Price   €50,000  or equivalent £GBP

pic



pic

pic

pic



Ref AK/3/10/16

1965 Ford GT40 engine complete and ready for inspection.

More Pictures - Click Here

Mathwall Engineering supplied 289 ci V8 motor to suit Mk I Ford GT40. Will
also work in a Mk I or Mk II AC Cobra with different inlet manifold.

This is a complete engine consisting of:-

1.     Period 1965 six bolt C5/601AE block which has been bored +30 thou,
crack tested and includes excellent original crankshaft, front cover, water
pump and GT40 baffled/wide winged sump pan.


2.    Pair of new/old stock 1965 iron GT40/hipo cylinder heads with large
GT40 valves and are historic racing compliant.


3.    GT40 flywheel with triple plate Borg & Beck clutch (good used).  I
can include a GT40 matching starter motor depending upon the offer received.

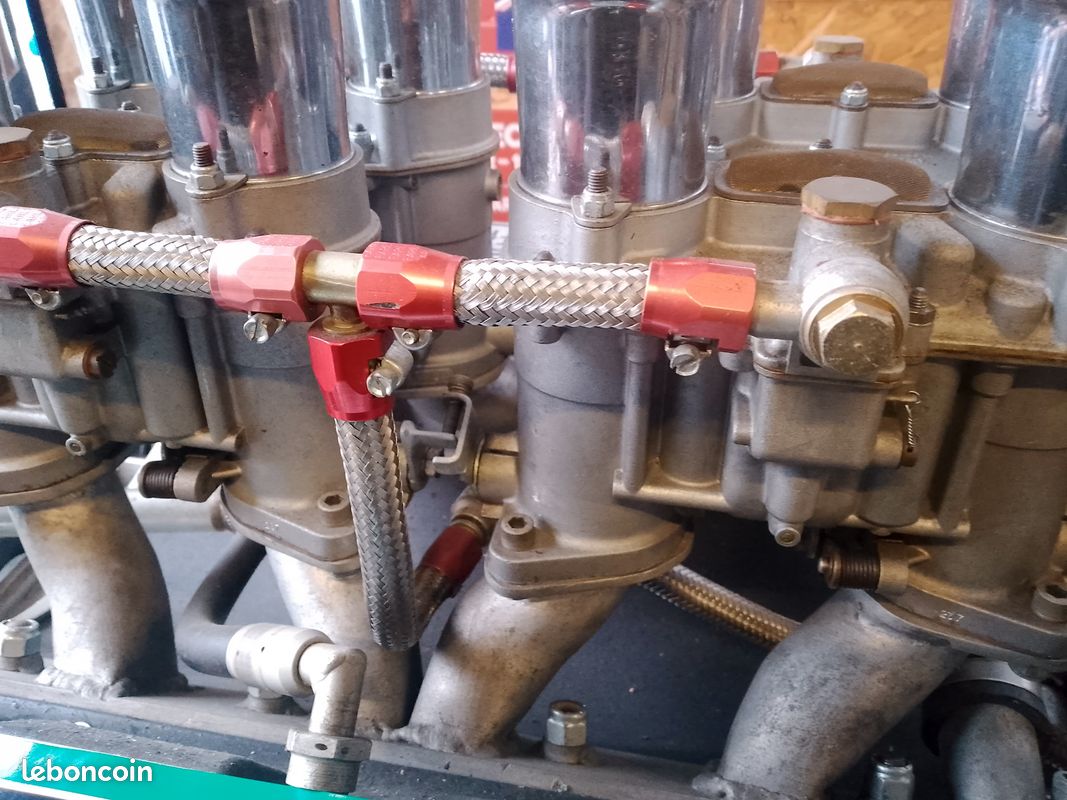

4.    FAV GT40 inlet manifold (serial 1036) with quad Italian 48 IDA
Webbers and aluminium turkey tray.


5.    Set of eight new KP high performance +30 thou pistons, with matching
piston rings sec


6.    Set of eight new Craeur high performance connecting rods to suit
above.


7.    New/old stock mild race camshaft, new set of solid lifters and
period push rods.


8.    Rare period Ford XE crankshaft damper, Mallory distributor and
pulleys.

The above is stripped for inspection, but will build to make a fully compliant pre-1966 motor to suit a Ford GT40 or AC Cobra.

 With original exhaust system, it will put out a standard 370 BHP, with the bonus that a number of the used parts have seen period action “back in the day”.

The engine was a spare for a customer's GT40, but is now surplus to requirements.

Price £15,000

Ref; KJ/4/12/15

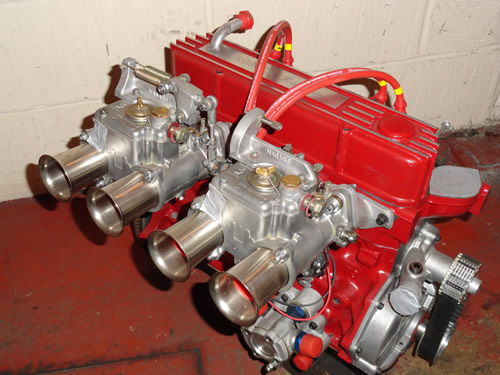

A completely new (just of the dyno) Lotus Twin Cam



See attached spec sheet



Price £17500



pic

pic

pic





Ref: BV/1/8/14

PARTS FOR A BMW M12/7

Engine blocks are genuine blocks F1 and F2, M12/13 and M12/7

Sparkbox Magneti Marelli for M12/7 is very good Extra 15hp

3 engine block, BMW Motorsport original M12/13 F1, M12/7 F2 (bearing steel)

89 mm new not honing

89 mm perfect condition

92 mm new, not honing

4 Pistons Mahle Original for M12/7 2000cc new

1 crankshaft BMW motorsport Original for M12/7 2000cc

1 Sparkbox Magneti Marelli for M12/7 Very Rare

1 Spark box Bosch BHKZ 8 pin and limit RPM

1 Ignition Spark sensor Original BMW Motorsport for M12/13

1 flywheel for M12/7

Best price for all this is £14,500 + Shipping





pic

pic

pic

pic

ref - C/6/7/06

Twin cam cam cover (the type with Lotus across the front, but not Big valve) freshly painted, with new cap.
Price £125

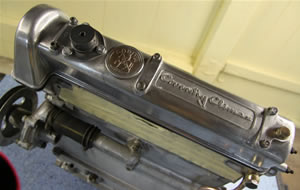

Coventry Climax Spec: 2.00 LITRE, SHORT STROKE FWP, CROSS BOLTED MAINS, COMPLETE WITH WEBER CARBS, FULLY REBUILT BY CROSSWAITE & GARDNER, DYNO'D @ 180+BHP, BOXED AND UNUSED SINCE REBUILD,
This is a very rare engine and can be used in a selection of single seater or sports car types.
Price £30,000


Ref
Description
RL01

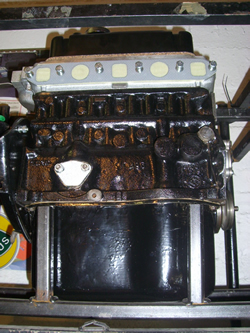

Ford 1650 pushrod engine on L block, baffled wet sump, 4 branch exhaust, no carbs. Built years ago and never run, £950

SOLD Twincam L Block, bored to 83.5mm and stored, with front covers, dry sump and cosworth oil pump, £650

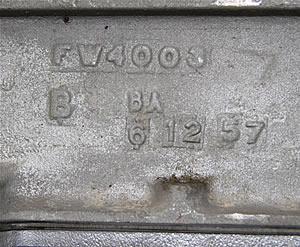

Coventry Climax bits including FWA block £350. Sold
Set FWB Rods £200. Lucas distributor £50, Sold
Jackshaft with steel gears £150, Sold
3 bearing camshaft carrier and cover £100. Sold
Many more valves, springs & odds and sods. Sold


BLOCKS   Top of Page
Details Picture (if available)

Ref: TT/7/2/19

Ford AX Block

Price £875 + Carriage

pic

pic

Ref: TT/7/2/19

Ford 711M BDG block

. It is 1600 but has a slight score in one bore but ok to bore out to 2Ltr

83 mm bore 211mm block height

Price £295 + Carriage

pic

pic

Ref: PH/23/2/19

Twin Cam Block for sale.

2 litre Twin Cam Block with special 2 litre steel crank and steel rods & pistons

Price Sensible offers

pic

pic

pic







pic

pic

pic



Ref: PH/23/2/19

Lotus T/C 2 litre block with special 2 litre steel crank and steel rods.

This blocks looks fine and the crank also looks fine. As new - not worn.

Big End 48.72mm Mains 53.74mm

Price Sensible offers

pic

pic

pic







pic

pic

pic

pic



Ref M/Tech

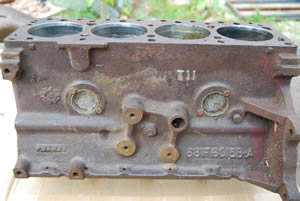

L Block  - Just needs a good clean up

Price £850



pic

 Late 109E block correctly machined for 85 mm FJ use. Gear drive steel caps bored and line honed +015"



Block has one liner only in no 4.  Sonic tested for wall thickness more than .100 everywhere .New cam bearings,  RH oil galley opened up for oil entry.

Comes with new JE 3 ring pistons/rings and clips. Will not sell separate. All fresh. Never assembled.

Price  £1750





  3 off  Fresh formula ford 711m blocks. Fresh liners honed for Mahle pistons.

Decked to zero height with same pistons. Cleaned. New core plugs new or checked cam bearings



Price  £850 or  £950 to include  Mahle pistons.



Ref: BY

FIA Lotus Twin Cam Block – race ready Price £995



pic

Ref: BY

Formula Ford Block – race ready Price £750



pic

Ref RA

Formula Junior 1100cc Block ready for immediate use

£1275 with chain drive

£1750 with gear drive







PIC

newBRAND NEW FORMULA FORD KENT 1.6L BLOCK

BRAND NEW
FORMULA FORD KENT 1.6L BLOCK

Historic Parts are pleased to announce the availability of the brand new Kent Block. Ford Racing in America manufactures this block. This new block has an iron casting that is stronger than the original. With the current 711M blocks becoming more and more scarce here is an opportunity to acquire a spanking brand new block that is SCCA approved with all the dimensions matching that of the original. It is precision machined to the tightest tolerances including 75,000 psi nodular iron main caps. This block is available from “Historic Parts” for £1285.00 + vat.



If seriously interested please call Len on 00 33 964 444 319 to discuss.

pic


HEADS    Top of Page
Details Picture (if available)

Ref: FM/26/7/17

clear out and Cyl head section

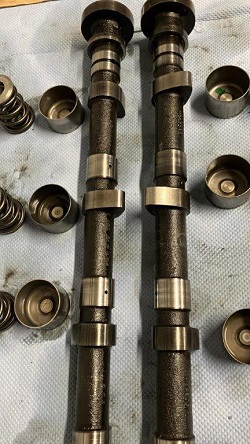

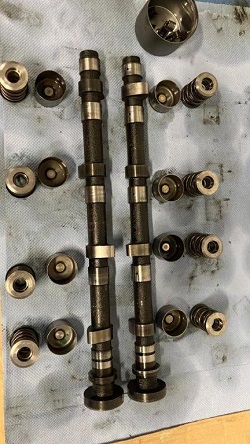

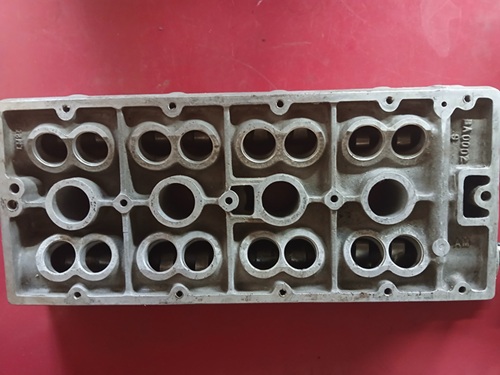

A complete Cyl Head for a  Cosworth  BDG, new valves, new seats, new guides.sorry sold

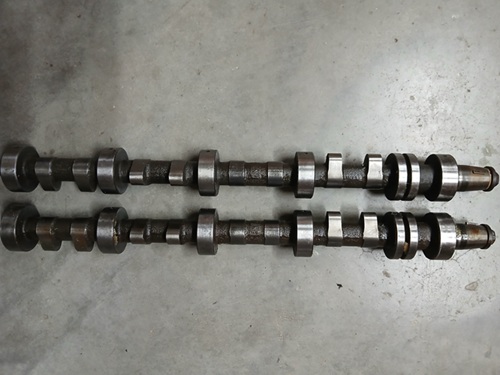

In perfect condition with 2  new camshafts. All the parts in good or perfect condition

Price for all £3950.





PIC



PIC

PIC

Ref;  AM/3/8/16

Brand New F3 Screamer Type D/D Cylinder Heads

 Manufactured to the highest standards

Come with valves and springs fitted
F3 1000cc cylinder head based on correct casting and fabricated using correct period method (steel plates and tubes) with modern CNC machining. DLC treated valves, Titanium retainers and correct spring for A6/A8 profile. 18cc Combustion chamber volume. 38,7 mm inlet valve, 31.7 mm Exhaust valve.

 Price  €5725  Euros

pic

pic

pic

 Ref; MF/15/9/15

AN extremely clean and usable MAE D/D Cylinder Head

Price  Sensible offers over  £2k

pic

pic



Ref MF/15/9/15

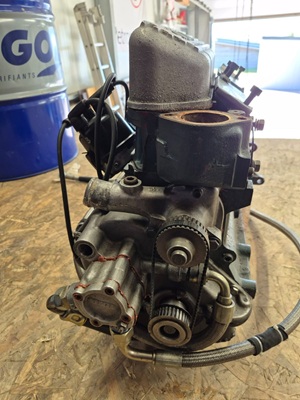

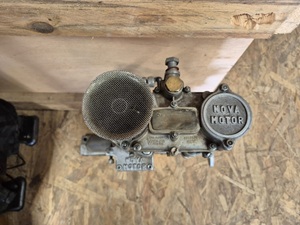

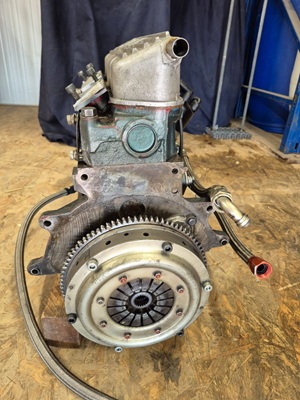

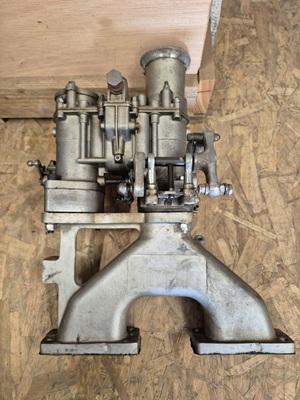

soldA complete MAE head, Manifold and D/D carb for sale

Price:  Sensible offers well over £4K

pic

pic

pic



F3 Screamer Cylinder head SOLD

Price £1100

pic

pic



F3 Screamer D/D Cyl Head Price £650 SOLD

f3



headRef IA/24/2/11

LDS/Alfa-Romeo Cylinder Head -

Just needs a good bath. Price £750

pic

NewSmarten up your Motor with this:

Beautiful Ali Cosworth Rocker Cover Price £220 + carriage



Cosworth

headref: SL/4/8/08 Alfa romeo 155 V6 Ti cylinder heads

New - never used (Still in delivery box) Price Euros 1700

head

head


head

FORD LOTUS CORTINA TWIN CAM HEAD GASKET - Composite (85.50 mm) TOP QUALITY WITH SUBSTANTIAL FIRE RING SUIT 125E & 3020E 1558 CC (1963 - 70) £40.00 EACH Also available Genuine OE Ford 1600 X/F Reinz Head Gaskets (80.50 mm) £20.00 each

gasket


ref: DH/22/8/06
Broadspeed 1500 (Clubmans) head, slight damage to one rocker cover screw hole. Large valves and was designed for Clubmans 1500 cars.  The head has been crack tested and found to be good.


Price £1350

BroadspeedBroadspeed
Broadspeed

  1 12G 940 Racing Formula Junior Cylinder Head - complete with valves and Iskendarian springs  1.2" ex  1.4" Inlet     £625
DH15/12/05
for salePucka F3 1000cc Screamer head  fitted with bronze guides and 10mm plugs Price £850



CRANKS     Top of Page
Details Picture (if available)

Clear out and the Engine/crankshaft sections.



Ref FM/3/10/17

Brand New Arrow crankshaft  48 mm, never fitted in an engine.sorry sold

Could be ok in a MAE 5 bearings, or Cosworth SCA.

Price  £1700

pic

pic

 Ref; RY/22/7/16

2 off: 81mm stroke BD/LTC crankshafts. Narrow Journal but on Honda Vtec rod size.sorry sold

The nominal size of these is 1.770"(45mm)

Some rods available to suit depending on length and application.

Brand New

Price  £1300 each.

pic

pic

Ref: FM/5/2/16

NEW !!!

Cosworth BD Crank 77.6mm  12 Bolt

Price £1425sorry now sold

pic



Ref: RY

Cosworth BD Narrow Journal Crankshaft



Price  £795sold

PIC

ref:  FM/18/10/14

DFR Crankshaft  - Brand New – still in its original Cosworth box

Price £3750

pic

pic

Ref CH/6/12/10 MAE crank, rope type seal, Good condition, 010" u/s mains and big ends. £750 sold

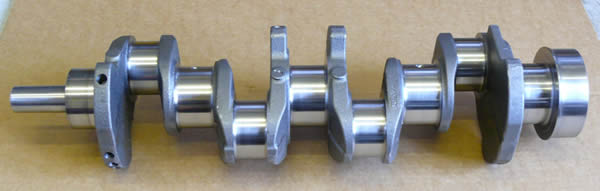

cranks5 Cranks - From Left to Right

Std X Flow Price £100

SOLD Std 77.60 mm stroke X Flow/BD - 12 Bolt Price £500

SOLD Formula Junior - rope seal 10 u/s maine 20 u/s big end Price £250

BDJ 53 mm Std - Narrow Journal 6 Bolt Price £600

BDJ 53mm Std - Narrow Journal 12 Bolt Price £600



Farndon 54mm GW40B Steel 12 bolt narrow journal - Std Dyno run only sold



£875

farndon


MISC/OTHER     Top of Page
Details Picture (if available)

Ref: AC/12/1/19 FPF ENGINE ITEMS FOR SALE

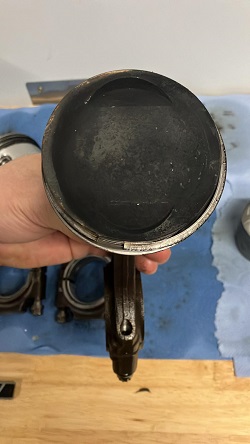

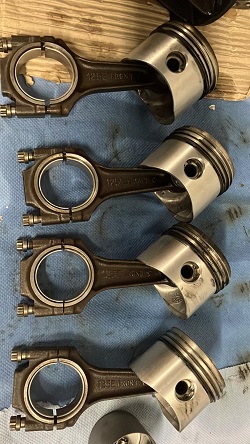

(Rods are attached to the pistons)

Set of Arrow Rods 2.0 Litre FPF bought new with very limited use £635

pic

Ref: AC/12/1/19 FPF ENGINE ITEMS FOR SALE

Top Idle Gear for 2.0 Litre engine (35 Teeth). £315

pic

Ref: AC/12/1/19 FPF ENGINE ITEMS FOR SALE

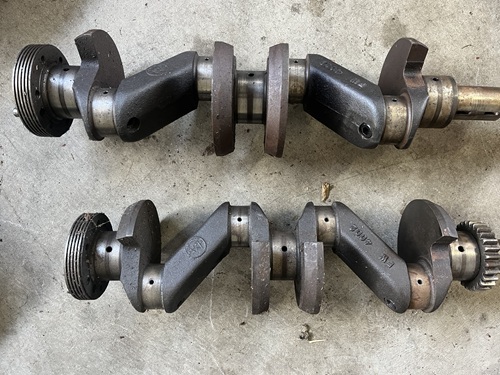

Crank 2.0 Litre FPF is in good condition Mains 2.4875 ins, Big end 2.1055 ins. £1400

pic

Ref: AC/12/1/19 FPF ENGINE ITEMS FOR SALE

Set of Omega Pistons - 2.0 Litre FPF bought new with very limited use £525

pic

Ref: LS/25/11/15

A new set of Heoplite/Powermax pistons.

Complete in original box with pins/rings/circlips.

They are std+ 0.60” size – suit Ford T/C  Elan etc

Price to clear  £195  the set

pic pic







ref:  FM/18/10/14

A set of BDA pistons with rings – excellent condition

Price £250

pic

GM/8/11/12

Ford (pre X flow) roller rockers. SOLD

PIC

pic

Excellent condition Std Lift                Complete set £475



Pre X flow Ford Front cover with oil pump Both in excellent condition Price £150 each

SOLDpic

SOLDpic



Ref AC/29/1/11

Cosworth BDA pistons (83.33 mm)

all in good condition valve pockets are for big vale 2.00 litre bda but will work with Atlantic smaller valves no problem.

I think that this piston bore size with an Atlantic spec bda crank will give it 1700 cc capacity.

Price  £425 the set

pic



pic

pic

A set of 85mm T/C Powermax pistons

- never used One pin has gone missing They come with two sets of rings and circlips

Price £250 the set

pic

pic

picRef; MSC/5/4/10

Toyota Novamotor front cover SOLD

with mech rev counter drive Its has a crack through one of the bolt holes but could be easliy repaired

pic

A Pair of L1 T/C Camshafts - £100 each
camshaft





RH Engine Mount, good used - F2/Atlantic/F Ford £60

engine mount
Coventry Climax Jackshaft £50jackshaft

Lotus T/C + 0.060" pistons & rings used slight mark on top of one - quite usuable £250

pistons
MG Metro Cam - Original leyland
Can be used in the MGOC Midget series £40
metro
Ref

CARBURETTORS, INLETS & FILTERS


  New A pair of twin choke webers and manifolds for a V8 Aston Martin - suits all except Vantage

Price  £500 the pair
twin choke webers

ref UF 7/3/05

BDG Alternator permanent magnet - with brackets New £225



CRANKSHAFT

Steel crankshaft. Same length as Ford xflow/TC block, but with larger diameter main bearings and smaller big ends. Long nose. Marked/dated 8/63.  Ref: p/20/10/06


U1/12/1/04 FVC crank 82.00 mm - 2 ltr Lip seal Mains .010" B/E .020" Good nick £400

Ref

FLYWHEELS & CLUTCHES

RRE38

Ford Xflow standard flywheels £15

RRE39 Ford Prexflow/Mk 1 Twin Cam 4 bolt iron flywheel £35
RRE40 AP Racing twin plate bronze clutch £200
RRE41 AP Racing Single plate bronze clutch £100

Ref
RODS

Ref

CAMSHAFTS & TIMING GEAR





A Pair of L1 T/C Camshafts - £100 each

camshafts

RRE070103
1 camshaft KC1FR1, used - Offers
RRE47 Ford OHV A8 race cam. VGC £45
RRE48 Ford OHV Kent 224 cam. VGC £40
RRE51 Ford Crossflow sprocket £5
LLEC1 Cortina GT 1600cc Camshaft original £50



Lotus Twin Cam Parts


"L" Block Race Prepared
£1,150.00
"L" Blocks Used £POA
£0.00
120 Link Chain Endless
£12.00
125E Twin Cam Rod Sets Used £POA
£0.00
3rd Cam Bearing Set
£6.00
4.8 Forged Steel Rod Sets Reconditioned
£350.00
4.8 New Rod Sets Saenz
£595.00
4.93 or 5.23 Rod Sets Saenz
£595.00
5.23 Forged Steel Rod Sets Narrow Only Reconditioned
£395.00
ARP Head Bolt and Washer Kit
£100.00
Cam Cover Gasket
£5.00
Camshaft Billet Chill Cast Pair New
£330.00
Camshafts Many Choices Reprofiled Exchange
£150.00
Clutch 71/4 Race Quartermaster Alloy
£255.00
Dry Sump
£160.00
Dry Sump Pump £POA
£0.00
Exhaust Gaskets Big Bore
£4.00
Exhaust Valves Race
£14.00
Flywheel Alloy
£245.00
Flywheel Steel
£150.00
Half round cam plugs
£6.00
Head Gasket 85.5
£40.00
Head Gasket 88.5
£40.00
Head Gasket OE Ford
£10.00
Inlet Valves Race
£14.00
Late 6 Bolt 3020E Cranks Used £POA
£0.00
Letter Box Gasket
£2.00
Lightweight Billet Cranks NEW
£1,350.00
Lotus OE 6 Bolt Flywheel Used
£35.00
Lower Gasket /Seal Set
£0.00
Lower Gasket and Seal Set
£0.00
Lower Gasket Set (early rope seal)
£29.00
Main Bearing Set +015
£38.00
Main Bearing Sets
£29.00
Piston Sets by JE
£445.00
Race Collets
£32.00
Race Followers
£13.00
Race Spring Retainers
£56.00
Repro BRM Cam Covers
£150.00
Rod Bearing Sets
£25.00
Rod Bearing Sets Narrow
£38.00
Steel Cranks Used £POA
£0.00
Thrust Washers
£10.00
Top Hat Shims
£2.50
Twin Cam Bearing Sets
£50.00
Valve Guides Bronze Intake and Exhaust
£7.00
Valve Springs Race
£75.00
Vernier Cam Pulleys
£105.00
Water Pump Rebuild Kit
£29.00
Weber Heads Used £POA
£0.00
Wet Sump Oil Pump H/P H/V
£60.00
Wet Sumps
£100.00




NEW ITEMS     Top of Page

My Ref: FM/29/10/18

A set of Cosworth BDH pistons by JE,
brand new in the box.



Price £550

pic

Ref: BG/24/1/17 In Clear Out, Engine/New, Accessories



BRM Cam Cover  – New casting from original BRM pattern.

Price £195

pic



Ref:  P/28/5/15

A  pair of brand new  SCA  carbs    Price  £1500 for the two .

pic



214N STAINLESS COMPETITION VALVES FOR THE FORD CVH ENGINE.

INLET VALVES 43.45mm X 8mm  X 134.80mm.

ALSO A SMALL STOCK OF 42.92mm head size

EXHAUST VALVES 38.10mm x 8mm x 131.70mm

ALSO A SMALL STOCK OF 37.92mm head size

ABSOLUTELY BRAND NEW.

THEY COME IN SETS OF 4 PER BOX

GREAT VALUE AT £36 PER BOX (£9 PER VALVE) INLET OR EXHAUST

£72 PER ENGINE SET (4 INLET & 4 EXHAUST).



Ref: JH/7/8/13

BRM Rocker Cover for Formula Ford and all X flow engines. It comes as an undrilled raw casting but at a good price.

Price £150

pic


1600 X flow water pump - with cast impellor £28.00 PIC

Ref: NB/30/1/12

Brand new Neil Bold Filter Type Oil Pumps for the Ford Crossflow engine

Beautifully made - Top Quality. - Look closely at pics ! Pressure rotor 0.625" scavenge 1.125" with bronze skew gears.

Price £385 + vat

More Pics Click Here

pic

Ref: GG/17/5/11

Brand New BMW M12 F2 Cam Carrier.

For intake and exhaust; In magnesium high strength alloy (AZ91 T6), Complete with caps in Ergal 7075; Suit BMW F2 engines - M12/7 to M12/10

Price Euros 2750 + vat/carriage.

pic



pic

pic

pic

Twin Cam Rocker Covers
£320 Each

pic

pic

ref; UF/25/1/10

New crankshaft-main caps for racing Elans and Cortinas in the correct shape and material (GGG 60)

Price £575 per set of 5 NO LONGER AVAILABLE

pic

Smarten up your Motor with this:

Beautiful Ali Cosworth Rocker Cover Price £210 + carriage

cosworth

Brand New Formula Ford Manifold Gasket

This brand new Formula Ford Manifold Gasket replaces the thin multi piece gasket. It is nice and thick and strong and can be used as a replacement more than once. Price £20 each

Gasket

meteringBrand New 8mm Metering Units to suit FVC BDG Hart 420 R Abarth and early BMW's

This is the series 2 pump with all steel internals

Injectors available to suit Metering units

£2850 each        Injectors £85 each

injectors

New Pistons
They are + .010 on dia and can be fitted to std bore 711M Blocks, which I can also supply if required This will save on an expensive liner job. Std deck height, eg, 77.6 mm stroke, with 5.23 mm rod.

The valve spacing is std BDA/D (not BDG/T/X) The piston has an intruder that can be machined off to suit desired Comp Ratio based on the cylinder head capacity. They come as a set complete with rings, (1.0 1.2 2.8.) mm, pins and double spiro locks. £495 plus VAT per set



Engine sets of 1600cc X Flow Inlet and Exhaust Valves in 214N steel (Full Race) Price £30 per set of 4 inlets or exhaust
