Parts For Sale

Gearbox



Mk8/9 Hewland case - fair nick but with section underneath cut away.

Does not affect functionality £150

Gearbox

gearbox



  Mk8/9 Sideplates - mint £280 the pair

sideplates



Items below Ref: JBLtr/7/08

Hewland Mk 9 VW Mag Case - 1 Hole £250 ono
RHS HC9 Alloy 206-C Side Plate Mk 9 Also LHS £85 each
A pair of FGA Mag Side plates - V Good £295
12/38 1st Gear Shaft £95
15/36 !st Gear Shaft £95

Mk 9 Ratios
21/30 23/28 19/23 18/34 16/34 23/27 18/34 24/27 22/29 24/26 18/28 21/27 25/27 15/31 22/28 21/29 15/36 22/25 £45 each

FT Ratios
27/29 22/34 22/25 21/27 15/31 18/28 £50 each


  Ford DFV /  Hewland Adaptor Plate - 2 off            £75 each


Hewland FT200

Mid 70s, historic spec 'box with four bolt main case. Five speed, 9:31 CW&P, cam and pawl LSD, CV output shafts. Low mileage since rebuild. Comes with a great selection of spare ratios - over 30 in total, many of which are brand new. Available with a choice of Ford, BMW or Toyota adapter plate.

£8,750




Hewland Mk.6 four speed,

9/31 CW&P, free diff. Brabham (upright) sideplates,
  spider shafts to take rubber doughnuts.

Fully rebuilt by Tony Wilson.
Freshly chromated casing.
Excellent throughout.
Perfect for an historic Formula Ford -
Price  £2,950

Hewland Mk6

Hewland Mk6



New!Hewland FGB

Hewland FGB/C gearbox. Currently in four speed specification, but with parts to convert to five speed.

All major components are in good condition – there are no cracks or welds on any of the castings; CW&P; gears; hubs; dog rings etc are all in good order. A few bearings are in need of replacement.

In addition to the gearbox, there is a brand new five speed first gear, a good, used, second gear, plus three pairs NEW standard ratios

£4,150




New!Hewland FGB

 Hewland FGB/C gearbox. Currently in four speed specification, but with parts to convert to five speed.

All major components are in good condition – there are no cracks or welds on any of the castings; CW&P; gears; hubs; dog rings etc are all in good order. A few bearings are in need of replacement.

In addition to the gearbox, there is a pair of early, “historic spec” sideplates, a brand new five speed first gear, a good, used,  second gear, plus six pairs of NEW standard ratios.

£4,395




New!Hewland FGB

Hewland FGB/C gearbox. Currently in four speed specification, but with parts to convert to five speed.

All major components are in good condition – there are no cracks or welds on any of the castings; CW&P; gears; hubs; dog rings etc are all in good order. A few bearings are in need of replacement.

In addition to the gearbox, there is a pair of early, “historic spec” sideplates to convert the ‘box to a historic spec/appearance.

There are also a brand new five speed first gear, a good, used, second gear, plus six pairs of  NEW standard ratios

Also available is a link anchor plate (as shown in the photo), to attach lower rear suspension links to the underside of the gearbox.

£4,650

FGB

fgb



New!DG300DG 300  Gearbox

New in 2001

9:31 CW&P

Powerflow diff

CV output shafts

Low mileage since rebuild by PDS

VGC (except minor damage to end cover(see pic) - one stud hole damaged easily repaired)

No cracks or  welds or any sign of damage other than the end plate stud hole - no grounding out or other damage to the underside of the main case.

Fresh casing  with dark chromating  just like from the factory.

Price  £7,950 (+ VAT)

Various sideplates available included in the price.



DG300


New!DG300DG 300

New in 2002
9:31 CW

Powerflow diff

CV output shafts

A pair of brand new inboard brake sideplates come with this box.

This box is as good as new. No cracks or any suspension stresses on this one.!!

You wont find a better example.

£10,000 + VAT.

Can be supplied with a pair of outboard brake sideplates (unused - old stock)

Also available is a pair of Hardy Spicer output shafts if required as an option

Plus adapter plates for either a small block Chevy or Ford V8

Several rear suspension pick up castings to fit DGs available

DG300

DG300




New!FGA  400  Gearbox
Zero Miles
Price  £6750

My ref :   MB/21/1/08
FGA


SOLDHewland FT200
Mid 70s, historic spec 'box with four bolt main case.
Five speed, 9:31 CW&P, cam and pawl LSD, CV output shafts.
Low mileage since rebuild.
Comes with a great selection of spare ratios - over 30 in total, many of which are brand new.
Available with a choice of Ford, BMW or Toyota adapter plate.
£8,750

SOLDBDA engine below & FT200 Gearbox can be purchased together for £20,750
Formula Atlantic BDA Engine
Cosworth, 1600cc, all steel BDA.
Zero miles from a comprehensive, Jennings, rebuild.
Absolutely complete - with carbs, filter, clutch, starter, exhaust etc.
£12,500




Ref: p/20/10/06

newCooper drop gears (new):  Ref: p/20/10/06

29:35
30:34
31:33
27/26

EACH  PR  £150



`boltsHewland output drive bolts. Complete set of (12) they are new and unused
Dimensions as shown
Price £90.00 the set.
length 97 mm
head diameter 22 mm
diameter under head 16.2 mm
other diameter 15.9 mm
thread 7/16" UNF





Mk 6/8/9 Gearbox Ratio Changing StandMk 6/8/9 Gearbox Ratio Changing Stand

Keep your gears off the dirt and all in order.

Light weight with non slip cushioned base

Price £20 + vat & carriage.



  Ref CR19/4/05

Mk 9 gearbox to F/F 1600 spec.
Gearbox spec: Mk.9 9:31 c w & p, free diff. , 4 speed, Mk 9 inboard sideplates & V.W output shafts.
Gearbox will be completely rebuilt. Build time from order approx. 4 to 6 weeks.
Price £ 2150.00 ( plus v.a.t if applicable )

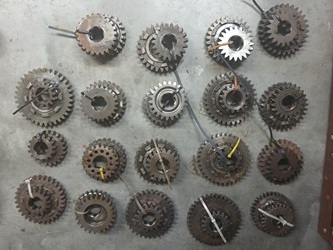

Mk V HEWLAND RATIOS

All £45 each – all excellent condition
Ratio                Qty

13/27  2nd         1
14/26 2            4
14/27 2            2
15/25 2            2
15/26 2            2
15/30 2            2
15/23               2
15/24               1
15/26               1
15/27               1
16/35 2            1
16/25 2            1
16/23               3
16/24               2
16/25               4
16/26               2
17/34   2          1
17/25               2
17/26               2
18/22               5
18/23               1
18/25               1
19/21               4
19/23               2
19/24               1
19/25               8
19/26               3
19/32   2          1
20/31               1
21/24               1
21/26               2
21/29               1
22/25               2
23/27               1
24/26               3
24/27               3
24/28               4
25/25               4
25/26               4

Ref: rpworddoc New FT200 Ratios
First Gears:-
14:45   £160
12:35   £200
13:35   £160

 Second Gears:-
16/32; 16/31; 16/30; 17/31; 17/30.    £80 each

Standard Gears:-
16/32; 16/31; 16/30; 17/31; 17/30; 19/33; 19/28; 19/27; 20/28; 21/29; 25/33; 19/25; 20/26; 21/27; 26/33; 23/29; 21/26; 24/29; 19/23; 21/25; 22/26; 19/22; 22/25; 28/31; 22/24; 28/30; 23/24; 24/24; 25/24.               £85 each

Ref: rpworddoc  New FG Ratios

First Gears:-
14:45   £160

12:35   £200

13:35   £160

 Second Gears:-

 16/32; 16/31; 16/30; 17/31; 17/30.        £80 each

 Standard Gears:-
16/32; 16/31; 16/30; 17/31; 17/30; 19/33; 19/28; 19/27; 20/28; 21/29; 25/33; 19/25; 20/26; 21/27; 26/33; 23/29; 21/26; 24/29; 19/23; 21/25; 22/26; 19/22; 22/25; 28/31; 22/24; 28/30; 23/24; 24/24; 25/24.               £80 each

 Ref: rpworddoc New DGB Ratios

Gear

Ratio



Price

14:42 & 16:40

3.00 first

2.5 second

1st & 2nd Combination Gear

£275

14:41 & 16:40

2.93 first

2.5 second

1st & 2nd Combination Gear

£275

14:41 & 15:39

2.93 first

2.6 second

1st & 2nd Combination Gear

£275

16:40

2.5

Second

£75

16:39

2.44



£75

17:39

2.29

Second

£75

17:38

2.24

Second

£75

17:38

2.24

Standard

£75

17:37

2.18

Standard

£65

18:39

2.17

Standard

£75

18:38

2.11

Standard

£65

18:37

2.06

Standard

£65

18:36

2.00

Second

£70

18:36

2.00

Standard

£65

19:37

1.95

Standard

£65

19:36

1.89

Standard

£65

20:35

1.75

Standard

£65

20:34

1.7

Standard

£65

21:35

1.67

Standard

£65

19:31

1.63

Standard

£75

21:34

1.62

Standard

£65

20:32

1.6

Standard

£75

22:34

1.55

Standard

£65

17:26

1.53

Standard

£65

21:32

1.52

Standard

£75

22:32

1.45

Standard

£65

23:33

1.43

Standard

£65

22:31

1.41

Standard

£65

23:32

1.39

Standard

£65

24:33

1.37

Standard

£65

24:32

1.33

Standard

£65

22:30

1.36

Standard

£65

22:29

1.32

Standard

£65

24:31

1.29

Standard

£65

22:28

1.27

Standard

£65

25:31

1.24

Standard

£65

25:30

1.2

Standard

£75

23:27

1.17

Standard

£65

26:30

1.15

Standard

£65

23:26

1.13

Standard

£65

28:31

1.11

Standard

£65

 Ref: rpworddoc LD200 18:19 Ratio

New 18:19 gears for Hewland LD200.

These are not a standard Hewland ratio and were specially made to order.
A useful, alternative top gear. £55 each


  Ref: rpworddoc Hewland FGB Gearbox
8:31 CW&P. Low mileage since rebuilt.£4,950

Ref: rpworddoc Hewland Mk. 8/9 main cases.
Selection of Hewland/VW main casings. Early and later types. Freshly chromated and machined for reverse gear. £175 to £395

Ref: rpworddoc Hewland DG 300 Sideplates
Pair of new DG300 outboard brake sideplates. Re-chromated. £295 pr.

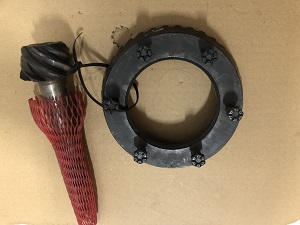

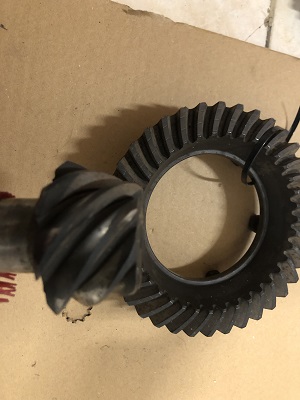

Ref: rpworddoc Hewland FGB 10:31 CW&P
Brand new. Complete with new pinion head bearing.
Massive saving on list price.£575

Ref: rpworddoc FT200 Dog Rings
New, narrow (quick change), dog rings for FT 200 £60 each

Ref: rpworddoc FG400/FGA/FGB/FGC Dog Rings
New, narrow (quick change), dog rings for FT 200 £60 each


  newHewland Mk.6 Gearbox
Four speed 'box with 8:35 CW&P and free differential.
The 'box has "Brabham/Upright" magnesium sideplates and spider output shafts to suit rubber doughnuts.
Fully rebuilt by Hewland agents
Suit Historic FF1600 or 1,000cc F3 etc.
£3,250

Ref: rpworddoc Hewland Mk.6 Historic Formula Ford Gearbox
Four speed 'box with the rare 9:31 CW&P and free differential making it perfect for historic FF1600.
The 'box has "Brabham/Upright" magnesium sideplates and spider output shafts to suit rubber doughnuts.
Has just been rebuilt by Tony Wilson.
£2,950

Hewland GearboxRef: rpworddoc Hewland Mk.8 Gearbox
Four speed 'box with brand new 9:31 CW&P and free differential.
The 'box has Hewland's smooth, early Mk.8 sideplates (for use with outboard brakes) and spider output shafts. Perfect for Historic FF1600.
The 'box has been rebuilt regardless of cost by PDS for Simon Hadfield - virtually all internal components have been replaced and the bill came to around £2,500. That £2,500 on top of the purchase price!!! Needless to say it's just about perfect - my only criticism would be that the bearing housing has a couple of small welds on it.
£2,950


  Hewland Mk9, 5 speed, 1.125" shaft, takes Mk5 gears, 8/31 diff with cam and pawl LSD.Done 5 sprints and 1 race since total overhaul by PDS.
Excellent condition.£2,750

  Hewland FT200 gearbox. ref:JB17/12/03
In general good working condition and in hillclimb
configuration but could easily be changed to circuit configuration if required.
£3800 as it is, or £5250 as a completely fresh, reconditioned box to historic racing spec

CC/21/4/04

Hewland DG 300/5 gearbox, (outboard brakes) unused since full rebuild
incl. new CWP Ideal for historic F5000, TGP, etc. New unit costs cica
£11,000 - Price £5,750 ono

Hewland Gearbox For Sale


GB031604 Lotus 51 Renault Gearbox complete with Bellhousing and input shafts Price £1325
Ref: d21/1/04 Renault Gearbox - Suit Lotus 51
Complete with bell housing and input shafts £1325

KF1/12/1/04 FT 200 complete, including new 10/31 CWP Main case - 2 bolt £4,650

KF2/12/1/04 FT 200 complete, including used 9/31 CWP Main Case - 2 Bolt £3,500
KF3/12/1/04 FGB - Complete £4,750
ABR/11/6/03 Lotus 20 type Renault Gearbox. Complete with original ali bell housing and clutch release assy.
Comes with correct long side shafts and mountings for inboard drum brakes
£3500


P28/12/02

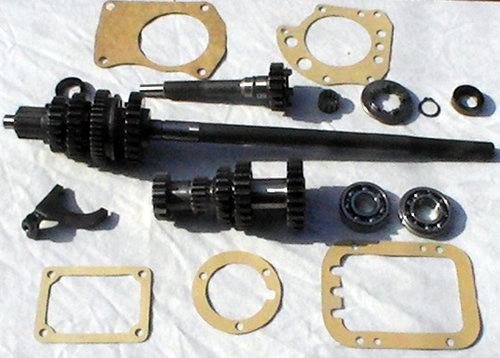

4 speed VW type gearbox internals
complete. As good as new     £225

LLG2
Porsche
"Hewland" Race
Gearbox
Contact me for other pictures
Price: £4950
12/01
Porsche gearbox
LLG3 Hewland FT200 period gearbox (1969) Good condition
CS27/1/03 Hewland Mk9, 4 speed, 9/31, recent alignment service by PDS. £1250 ono

New Hewland / Staffs Gears & Dog Rings
Currently Available: -



DOG RINGS Ref RR0203

Mk.8/9                 £50

Series 5/F3           £50

FT200                  £70

FG Series             £70

DG300                 £70


DG 300 Gears Ref RR0203

Gear

Ratio



Price

18:38

2.11

Standard

£75

18:37

2.06

Standard

£75

18:36

2.00

Standard

£75

19:37

1.95

Standard

£75

20:35

1.75

Standard

£75

20:34

1.7

Standard

£75

21:35

1.67

Standard

£75

21:34

1.62

Standard

£75

22:34

1.55

Standard

£75

22:32

1.45

Standard

£75

23:33

1.43

Standard

£75

23:32

1.39

Standard

£75

22:30

1.36

Standard

£75

24:32

1.33

Standard

£75

22:29

1.32

Standard

£75

24:31

1.29

Standard

£75

22:28

1.27

Standard

£75

25:31

1.24

Standard

£75

23:27

1.17

Standard

£75

26:30

1.15

Standard

£75

23:26

1.13

Standard

£75

28:31

1.11

Standard

£75


DGB Gears Ref RR0203

Gear

Ratio



Price

14:42 & 16:40

3.00 first

2.5 second

1st & 2nd Combination Gear

£200

14:41 & 16:40

2.93 first

2.5 second

1st & 2nd Combination Gear

£200

14:41 & 15:39

2.93 first

2.6 second

1st & 2nd Combination

£200

GEARBOXES FOR SALE Ref RR0203

Hewland Mk 9 four speed, 10:31 CW&P, free differential (FF2000/Sports 2000 spec). Freshly rebuilt. Excellent condition except that the maincase has been welded. £1,400

DG300 Formula 5000 ‘box. 9:31 CW&P, cam and pawl LSD.

Good condition. Complete with 15 new spare ratios and 5 new dog rings. £6,500

FT gears!

Gear Ratio New/Used Price
14:45 3.21 First Gear New £145
13:35 2.69 First Gear New £145
15:32 3.13 Standard Used. Average £40
15:31 2.07 Second Used only £50
16:32 2.00 Second New £75
16:32 2.00 Standard New £75
16:31 1.94 Second New £75
16:31 1.94 Standard New £75
16:30 1.875 Second New £75
16:30 1.875 Standard New £75
17:31 1.82 Second New £75
17:31 1.82 Standard New
1 only £85
17:30 1.76 Second New £75
17:30 1.76 Standard Used only
£40
17:29 1.71 Standard New
1 only £85
17:27 1.59 Standard Good Used only £50
18:28 1.56 Standard New £75
19:28 1.47 Standard 1 New
1 Good Used £85
£50
18:26 1.44 Standard New
1 only £85
19:27 1.42 Standard New £75
20:28 1.4 Standard 1 New
1 Used £85
£45
21:29 1.38 Standard New £75
20:27 1.35 Standard New
1 only £85
25:33 1.32 Standard Used only £45
20:26 1.3 Standard New £75
21:27 1.29 Standard New
2 only £85
26:33 1.27 Standard New £75
23:29 1.26 Standard New
2 only £85
21:26 1.24 Standard 2 New £85
24:29 1.21 Standard New
1 only
£85
19:23 1.21 Standard New
1 only £85
21:25 1.19 Standard New £75
22:26 1.18 Standard New £75
19:22 1.16 Standard New £75
22:25 1.14 Standard New £75
28:31 1.11 Standard New £75
22:24 1.09 Standard New
1 only £85
28:30 1.07 Standard New £75
23:24 1.04 Standard New £75
24:24 1.00 Standard New £75
25:24 0.96 Standard New
2 only £85
